Segment Slots in Racks

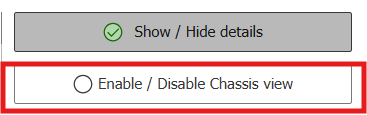

Slots in Rack Objects can be splitted into several segments. In case there are several smaller devices in one slot. Please be aware the segmented slot is only visible if the checkbox "Enable / Disable Chassis view" is unboxed.

Here is an easy example for explaining:

1. Open the rack just and move your mouse cursor to the segment slot you want to divide and a gear wheel should appear.

2. Click on the gear wheel and select "Segment Slot"

3. To the bottom right a new swall window appears. You can choose the numbers of segments you want to create and after clicking segment slot its done.
